What Is Polymeric MDI (pMDI)?

---

Polymeric MDI, often called pMDI, is one of the most widely used isocyanates in polyurethane manufacturing. From rigid insulation foam and sandwich panels to imitation wood, refrigerators, and construction materials, pMDI plays a critical role in building strong, durable PU structures.

But what exactly is pMDI, and why does choosing the right pMDI matter just as much as selecting the right polyol?

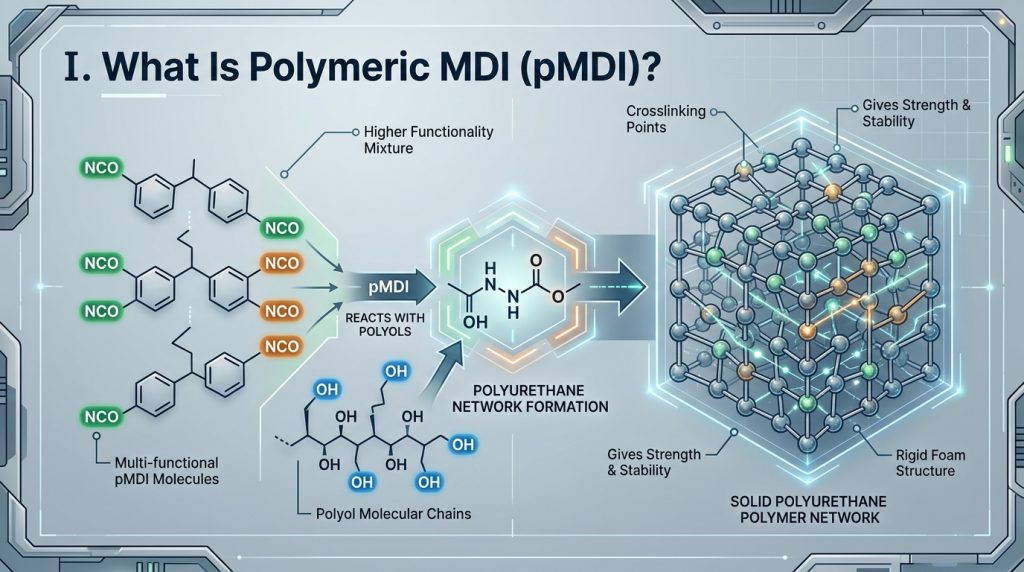

What Is Polymeric MDI (pMDI)?

Polymeric MDI is a mixture of methylene diphenyl diisocyanate (MDI) molecules with different functionalities. It reacts with polyols to form the polyurethane polymer network that gives foam its strength and dimensional stability.

Compared with pure MDI, pMDI generally offers higher functionality, making it especially suitable for rigid polyurethane foam and structural applications where compressive strength and thermal insulation are important.

In simple terms:

Polyol provides flexibility and design potential. pMDI provides the reactive framework that turns the formulation into a solid polyurethane structure.

Why Is pMDI Important?

Every PU formulation depends on a precise balance between the hydroxyl groups in the polyol and the isocyanate groups in pMDI.

That balance directly affects:

• Foam density
• Compressive strength
• Cell structure
• Dimensional stability
• Thermal insulation performance
• Processing stability

Even when using the same polyol, changing the pMDI grade or reaction balance can produce very different foam results.

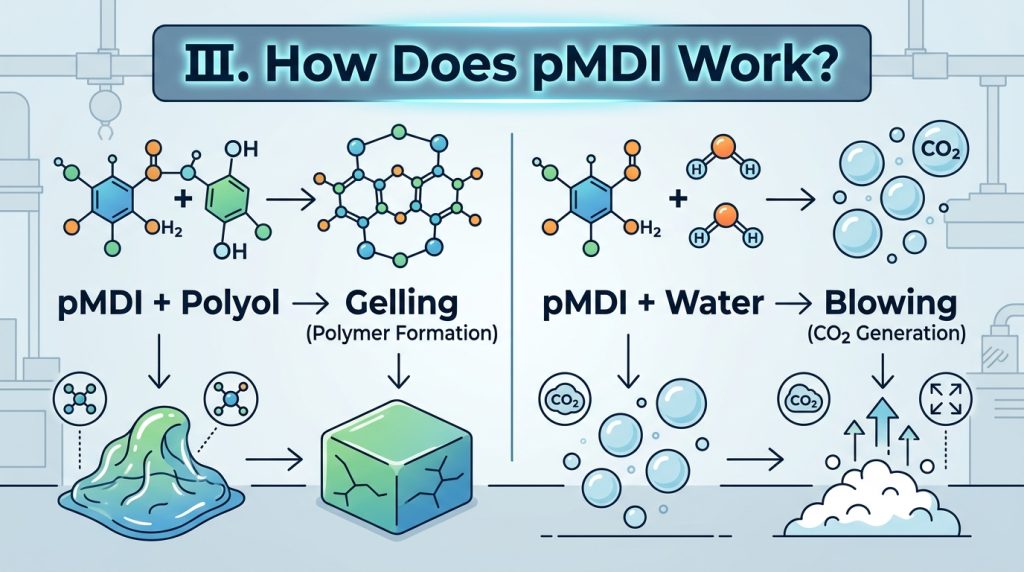

How Does pMDI Work?

During foaming, the –NCO groups in pMDI react with the –OH groups in polyols to create polyurethane chains.

At the same time, part of the isocyanate reacts with water, generating carbon dioxide that expands the foam and forms its cellular structure.

The process can be simplified as:

pMDI + Polyol → Polymer Formation (Gelling)

pMDI + Water → CO₂ Generation (Blowing)

A successful formulation depends on keeping these two reactions in balance. Too much or too little reactivity can lead to unstable foam, poor strength, or processing problems.

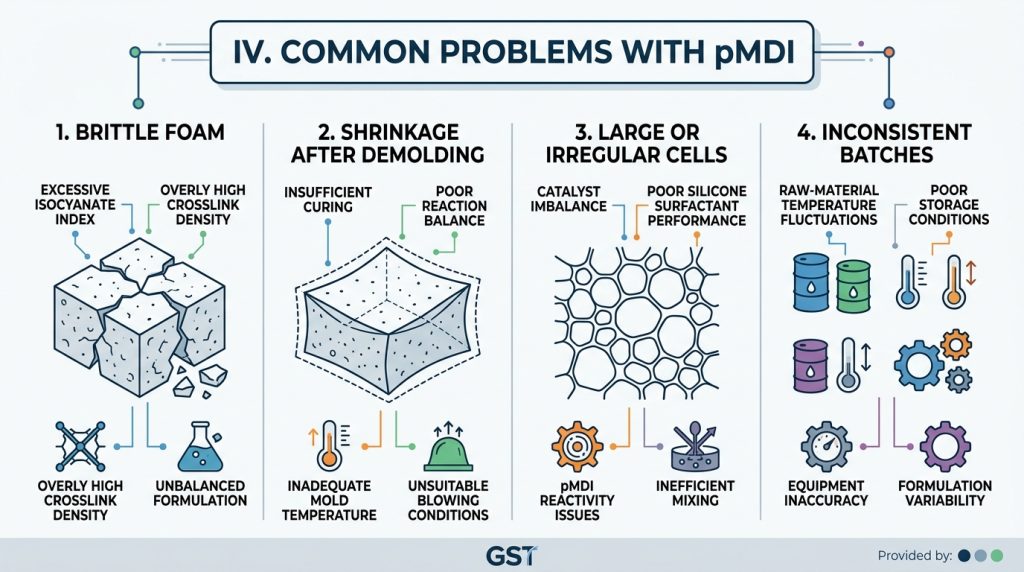

Common Problems with pMDI

Foam becomes brittle

Possible causes include excessive isocyanate index, overly high crosslink density, or an unbalanced formulation.

Shrinkage after demolding

This may result from insufficient curing, poor reaction balance, inadequate mold temperature, or unsuitable blowing conditions.

Large or irregular cells

Cell defects are often related to catalyst balance, silicone surfactant performance, pMDI reactivity, or mixing efficiency.

Inconsistent production batches

Raw-material temperature, storage conditions, equipment accuracy, and formulation consistency can all affect pMDI performance on the production line.

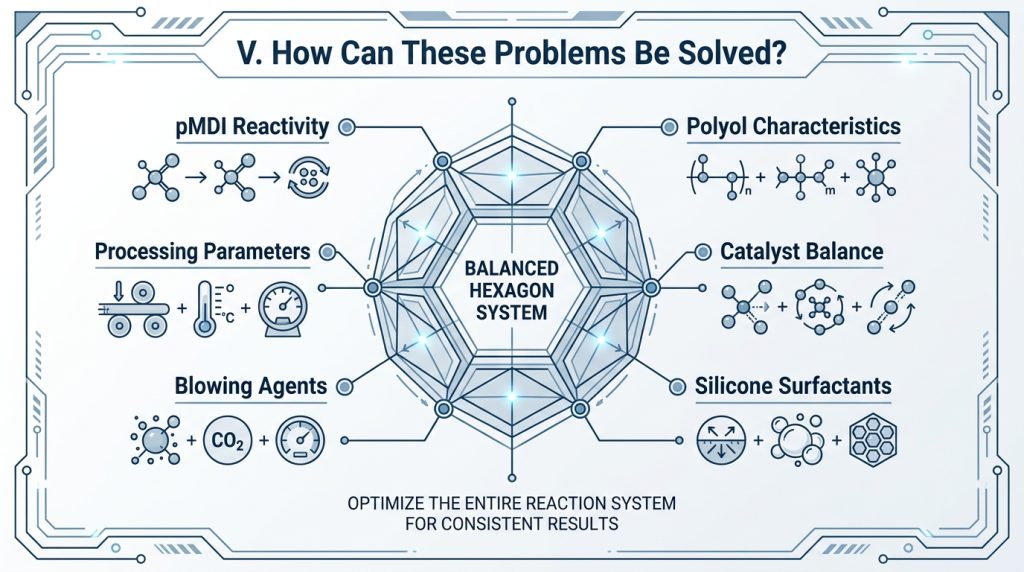

How Can These Problems Be Solved?

Replacing pMDI alone is rarely the complete answer.

A stable PU formulation requires optimization of the entire reaction system, including:

• pMDI reactivity
• Polyol characteristics
• Catalyst balance
• Silicone surfactants
• Blowing agents
• Processing parameters

By evaluating cream time, gel time, rise profile, density, compressive strength, and dimensional stability together, manufacturers can significantly reduce production variability.

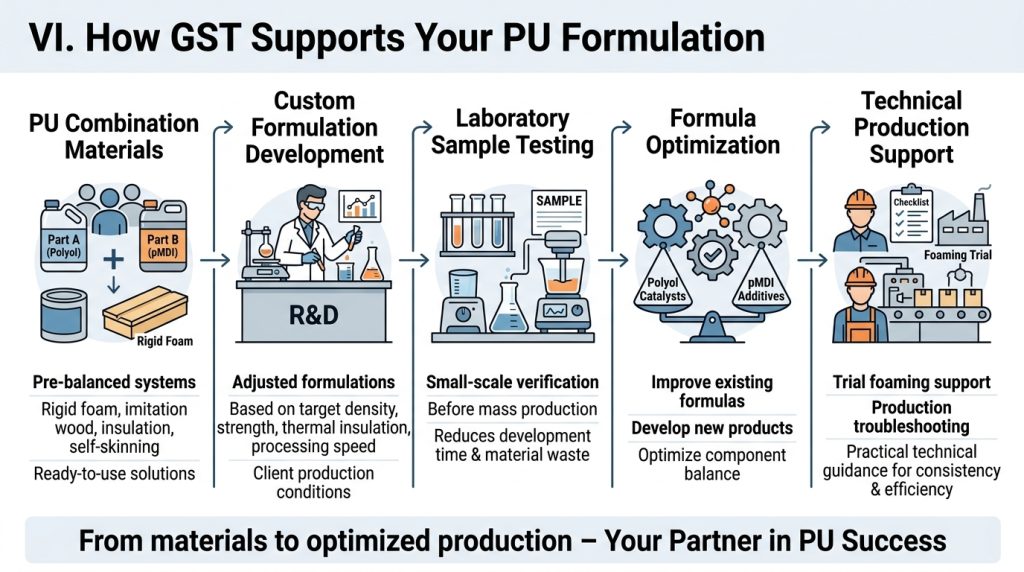

How GST Supports Your PU Formulation

At GST, we provide more than polyurethane raw materials—we deliver complete application solutions.

PU Combination Materials

Pre-balanced systems developed for rigid foam, imitation wood, insulation, self-skinning, and other PU applications.

Custom Formulation Development

Our R&D team adjusts formulations based on target density, strength, thermal insulation, processing speed, and customer production conditions.

Laboratory Sample Testing

Small-scale formulation verification before mass production helps reduce development time and material waste.

Formula Optimization

Whether you’re improving an existing formulation or developing a new product, GST can optimize the balance between polyol, pMDI, catalysts, and additives.

Technical Production Support

From trial foaming to production troubleshooting, our engineers provide practical technical guidance to improve consistency and efficiency.

The Right pMDI Is Part of the Right System

Polymeric MDI is not simply an isocyanate—it is a key contributor to foam structure, strength, and processing stability.

The best PU performance comes from the right pMDI, the right polyol, and a well-balanced formulation working together.

If you’re developing rigid polyurethane foam or looking to improve production consistency, GST can provide PU combination materials, formulation development, sample testing, and technical support tailored to your application.
